The load capacity of the lowbed trailer is mainly achieved by the frame, that is, the most important factor affecting the low bed trailers load capacity is the frame. The stronger the frame, the better the carrying capacity.

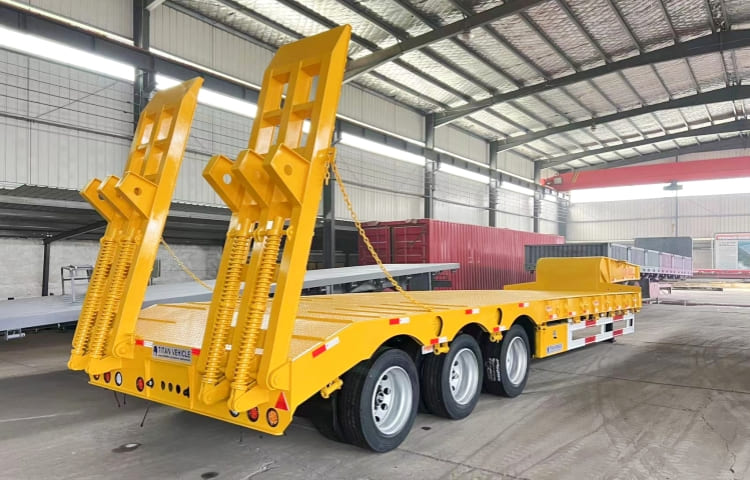

Lowbed trailer loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment. Low bed trailers main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.
80 Ton Tri Axle Lowbed Trailers Manufacturers in Mauritania
80 Ton Tri Axle Lowbed Trailers Manufacturers in Mauritania
80 Ton Tri Axle Lowbed Trailers Manufacturers in Mauritania

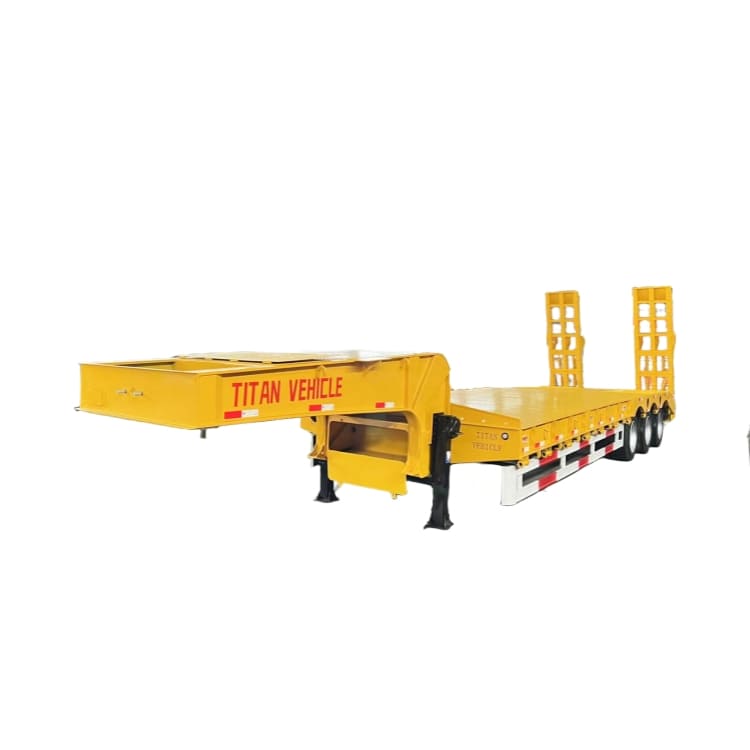

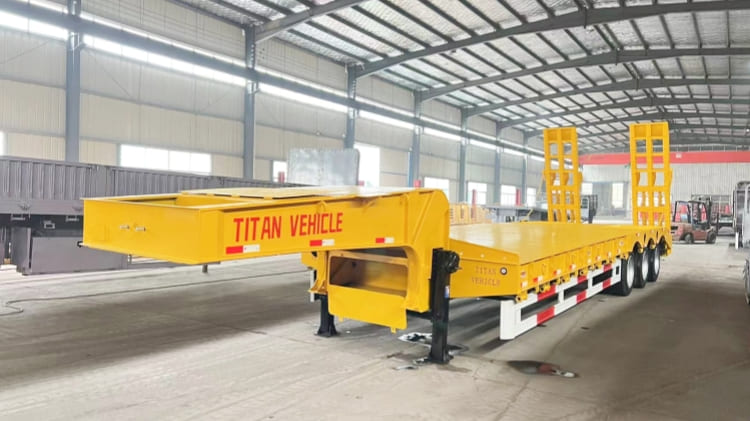

Detail of Tri Axle Lowbed Trailers
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 80 tons
Axle: 3 axle low bed trailer, 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

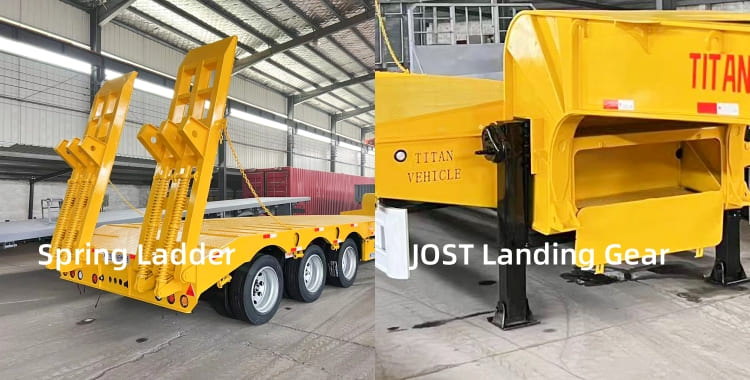

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Drawing of Tri Axle Lowbed Trailers
